Wired Connection

Follow the procedure below to setup a printer.

  1. Make sure printer is turned on before starting wired connection setup.

    If the power is on, the ON lamp (A) will be lit or flashing.

    figure: ON lamp is lit or flashing

    Important

    • If printer is performing cleaning, print head alignment, or other processes, wait for the process to finish, before starting setup.
  2. Press the Setup button (B).

    figure: Press the Setup button
  3. You will need an Ethernet cable (sold separately).

    figure: Ethernet cable

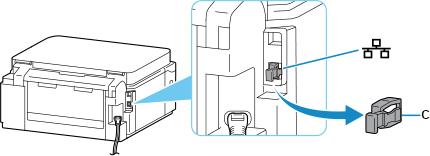

  4. Remove the Cap (C) from the port located on the left side at the back of the printer.

    figure: Remove the cap
  5. Connect the printer and a network device (router, etc.) with an Ethernet cable (D).

    Do not connect to any other port.

    figure: Connecting ethernet cable
  6. Use the Left or Right button (E) to select Device settings and press the OK button.

    Setup menu screen: Select Device settings
  7. Select LAN settings and press the OK button.

    Device settings screen: Select LAN settings
  8. Select Wired LAN and press the OK button.

    LAN settings screen: Select Wired LAN
  9. Select Enab./dis. wired LAN and press the OK button.

    Wired LAN screen: Select Enab./dis. wired LAN
  10. Select Enable and press the OK button.

    Enab./dis. wired LAN screen: Select Enable
  11. If the screen on the below appears, press the OK button.

    If the following screen is not displayed, proceed to the next step.

    Wired LAN screen: Enabling wired LAN disables Wi-Fi and Wireless Direct
  12. Press the COPY button (F).

    figure: Press the COPY button

    The network connection setup is now complete.

  13. Return to the application software and proceed with the installation.

    macOS

    Click Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

    Dock
